The Elcometer 121/4 Paint Inspection Gauge (P.I.G) is a hand-held paint gauge that offers a quick, versatile method of coating examination and measurement in a portable, easy-to-use format.
The paint inspection gauge is available in two versions, Standard and Top:
Standard paint gauges can be used for microscopic coating examination and destructive measurement of coating thickness.
Top inspection gauges have the same functionality as standard paint gauges and can also be used for cross hatch adhesion testing using optional tools.
Compact and convenient, ideal for paint thickness measurement in confined areas
Made of anodised aluminium for durability
Built-in 50x micropscope with rotatable graticule scale
Bright white LED light source for clear vision through the microscope

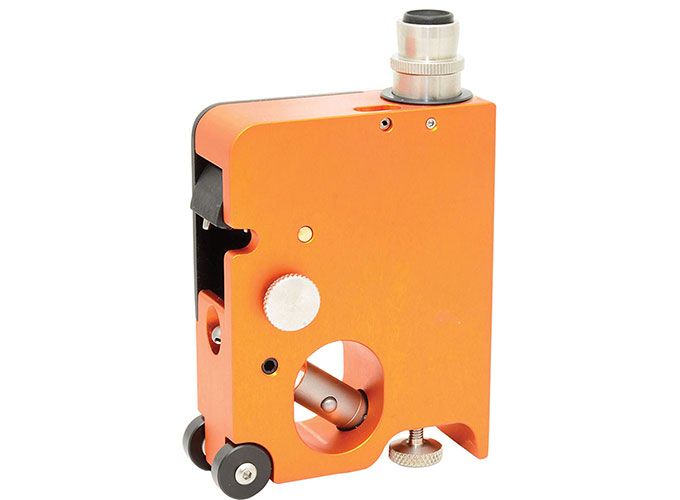

The standard paint inspection gauge holds a single cutting tool with built-in storage for 3 cutting tools

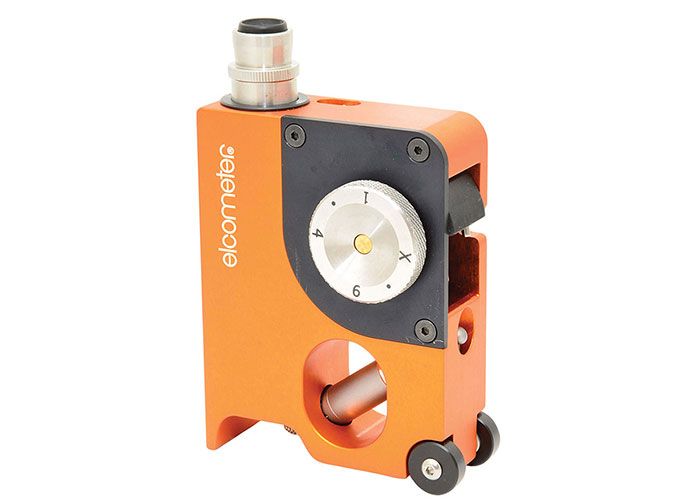

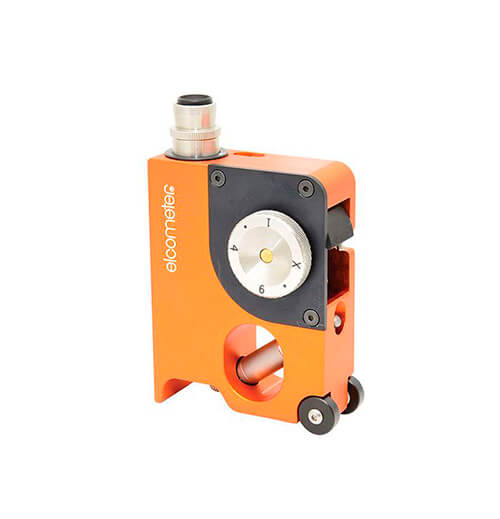

The top model paint gauge cutting tools are mounted on a rotary tool holder within the body of the gauge, allowing rapid change from one test to the next
The top model tool holder accommodates three cutting tools plus an optional cross hatch cutting tool
The Elcometer 121/4 Paint Inspection Gauge (P.I.G) is a hand-held paint gauge that offers a quick, versatile method of coating examination and measurement in a portable, easy-to-use format.
The paint inspection gauge is available in two versions, Standard and Top:
Standard paint gauges can be used for microscopic coating examination and destructive measurement of coating thickness.
Top inspection gauges have the same functionality as standard paint gauges and can also be used for cross hatch adhesion testing using optional tools.
Compact and convenient, ideal for paint thickness measurement in confined areas
Made of anodised aluminium for durability
Built-in 50x micropscope with rotatable graticule scale
Bright white LED light source for clear vision through the microscope
The standard paint inspection gauge holds a single cutting tool with built-in storage for 3 cutting tools
The top model paint gauge cutting tools are mounted on a rotary tool holder within the body of the gauge, allowing rapid change from one test to the next
The top model tool holder accommodates three cutting tools plus an optional cross hatch cutting tool

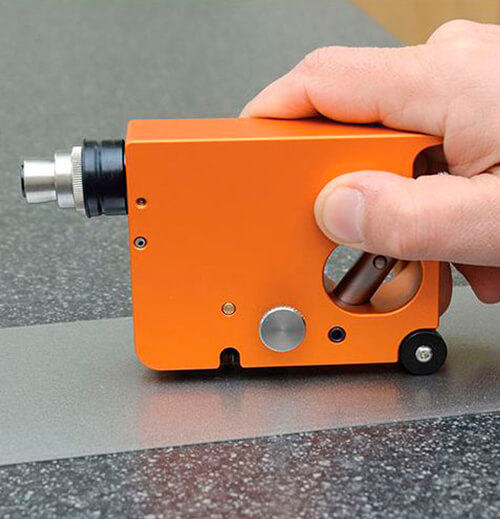

Destructive dry film thickness test

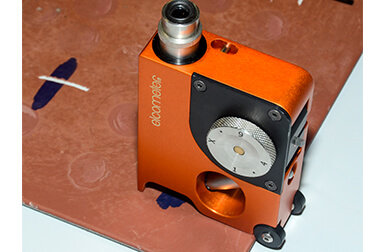

Position the gauge vertically so that the microscope lens is over the cut.

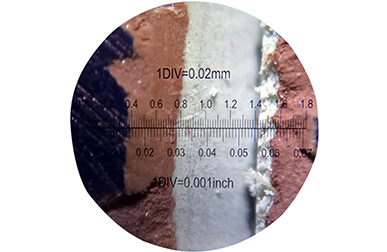

Look through the microscope lens and rotate the focus adjuster until the cut is visible clearly.
AS 1580.108.2, AS 1580.408.4*, AS 3894.9*, ASTM D 3359-B*, ASTM D 4138-A, BS 3900-C5-5B, BS 3900-E6*, DIN 50986, ECCA T6*, EN 13523-6*, ISO 2808-5B, ISO 16276-2*, ISO 2409*, ISO 2808-6B, JIS K 5600-1-7, NF T30-038*, NF T30-123
* Standards apply to Top Model only
Standards in grey have been superseded but are still recognised in some industries.
| Description | ||||
| Elcometer 121/4 Standard Paint Inspection Gauge | Elcometer 121/4 Top Paint Inspection Gauge | Certificate | ||
| Part Number | A121—S | A121—T |
 |
|
| Range | 2 – 2,000μm (0.08 – 80mils) Accuracy is dependent on tool cut angle, half a division | |||
| Weight | Standard: 369g (13oz) Top: 383g (13.5oz) |
|||
| Dimensions | Standard: 110 x 75 x 30mm (4.3 x 3 x 1.2”) Top: 110 x 75 x 40mm (4.3 x 3 x 1.6″) |
|||
| Packing List | Elcometer 121/4, cutters 1, 4 and 6, microscope (x50 magnification), 4 x AG3 batteries for lamp (fitted), hexagonal wrench, black marker pen, wrist strap, carry case and operating instructions | |||
Elcometer 121/4 Standard Paint Inspection Gauge
Part Number : A121—S
Elcometer 121/4 Standard Paint Inspection Gauge
Part Number : A121—SC
Elcometer 121/4 Top Paint Inspection Gauge
Part Number : A121—T
Elcometer 121/4 Top Paint Inspection Gauge
Part Number : A121—TC
