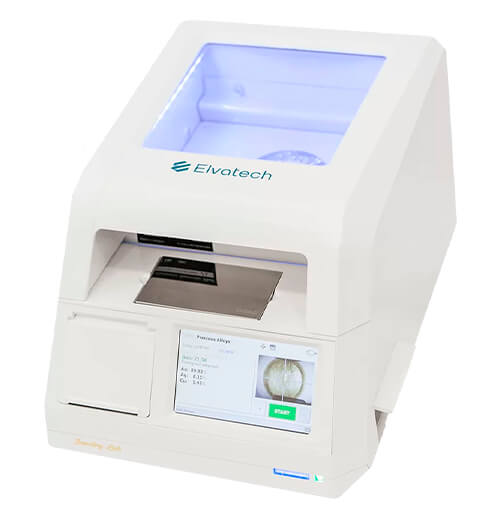

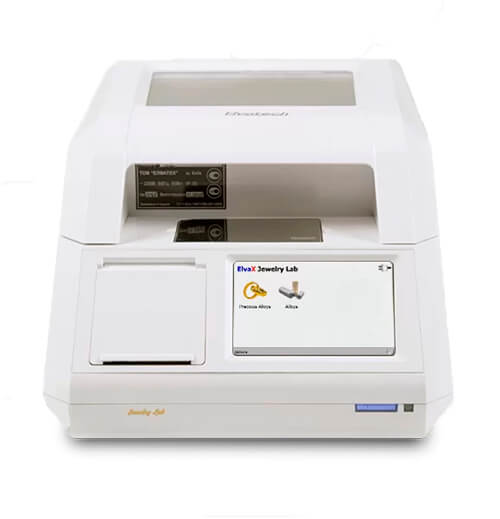

ElvaX Jewelry Lab is aimed on high-accuracy analysis of jewelry and precious metals. Measurement process only takes several seconds. The result is shown in both percent share and karats. ElvaX Jewelry Lab is also capable of detecting coatings and nonstandard alloys. This instrument can be operated either using the embedded computer with the high-resolution touchscreen display, or using a PC with ElvaX™ software installed. The integrated CCD camera makes it possible to target the required spot of the sample undergoing analysis. Automatic collimator changer allows you to select the required measurement spot diameter. ElvaX Jewelry Lab has integrated high accuracy scales and an integrated printer, which allows the user to print out analytical certificates containing chemical composition, weight and even price. An integrated rechargeable Li-ion battery allows the analysis in the field. ElvaX Jewelry Lab is a perfect benchtop gold and silver testing machine which allows you to define gold and silver purity and measure gold assay.
ElvaX Jewelry Lab is aimed on high-accuracy analysis of jewelry and precious metals. Measurement process only takes several seconds. The result is shown in both percent share and karats. ElvaX Jewelry Lab is also capable of detecting coatings and nonstandard alloys. This instrument can be operated either using the embedded computer with the high-resolution touchscreen display, or using a PC with ElvaX™ software installed. The integrated CCD camera makes it possible to target the required spot of the sample undergoing analysis. Automatic collimator changer allows you to select the required measurement spot diameter. ElvaX Jewelry Lab has integrated high accuracy scales and an integrated printer, which allows the user to print out analytical certificates containing chemical composition, weight and even price. An integrated rechargeable Li-ion battery allows the analysis in the field. ElvaX Jewelry Lab is a perfect benchtop gold and silver testing machine which allows you to define gold and silver purity and measure gold assay.
Analysis accuracy of precious metals and jewelry is better than 0,1%
The whole measurement process takes only several seconds
Integrated computer, high-accuracy scales, printer and a rechargeable Li-ion battery
X-ray fluorescence analysis surpasses the rest of analytical methods in terms of speed, accuracy, and simplicity. It’s a non-destructive method, in which analysis is targeted at the spot of interest. The diameter of an analytical spot can be easily changed.
Anode: W
Voltage: 40 kV
Current: 200 uAmp
Power: 4 W
5 position collimator changer from 1 to 10mm
DPP: proprietory DAS (Dynamically Adaptive Shaping) type
MCA: 4096 channels
Type: Fast SDD (optional Si-PIN)
Area: 25 mm2 (6 mm2 for Si-PIN)
Energy resolution: 140 eV (165 eV for Si-PIN) at Mn Kα
Dimensions: 280 х 385 х 200 mm
Analitycal chamber: 185 x 212 x90 mm
Weight: 7 kg
Power supply: 90 – 240 V, 50/60 Hz
Power consumption: 40 W
Battery: 6 hours continuous operation
Operating system: Windows EC
Analysis algorithm: Fundamental parameters (FPA)
Data transfer: 2 USB ports, Micro SD, Ethernet
Data input: Keyboard and mouse can be connected for data input
Get full information about the jewelry item including a plating presence
Easy select the analyzed spot size and position the sample
To give a customer a full jewelry assay service right on the counter
Instantly print the assay results for a customer
