The NOVOTEST BEND-6860 is used to determine the elasticity or resistance, adhesion and elongation of coatings on sheet metal in accordance with ISO 6860, ASTM D 522-A, BS 3900-E11, ECCA T7.
Features
The simplicity and reliability of the design.

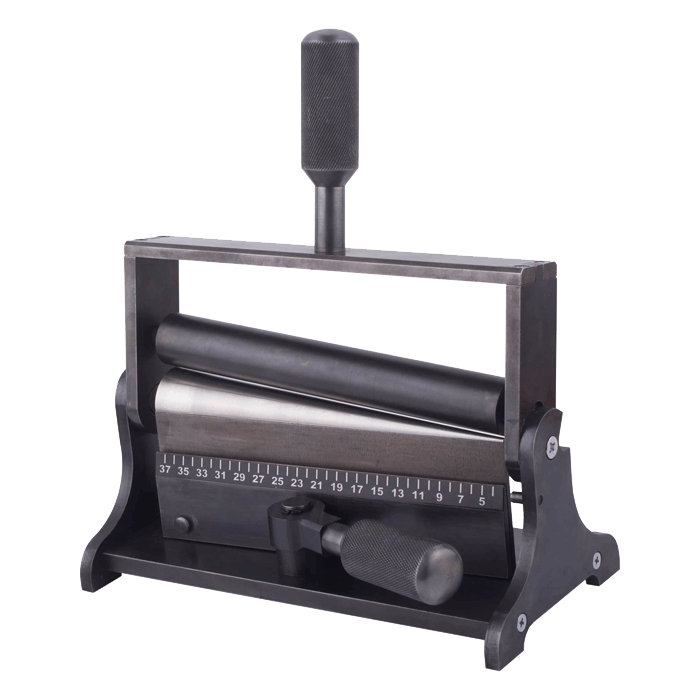

The sample is clamped against a conical mandrel and is bent around the mandrel by a roller mounted on a hand operated lever. The diameter of the mandrel at the point where the coating of the sample starts to crack can be determined from a scale (3-37mm) marked on the sample clamp.
The NOVOTEST BEND-6860 is used to determine the elasticity or resistance, adhesion and elongation of coatings on sheet metal in accordance with ISO 6860, ASTM D 522-A, BS 3900-E11, ECCA T7.
The simplicity and reliability of the design.
The sample is clamped against a conical mandrel and is bent around the mandrel by a roller mounted on a hand operated lever. The diameter of the mandrel at the point where the coating of the sample starts to crack can be determined from a scale (3-37mm) marked on the sample clamp.
