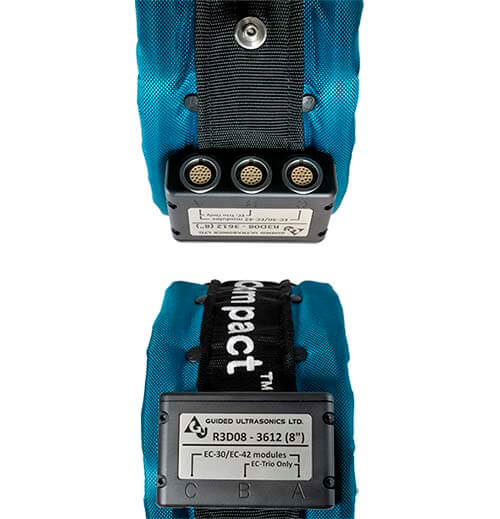

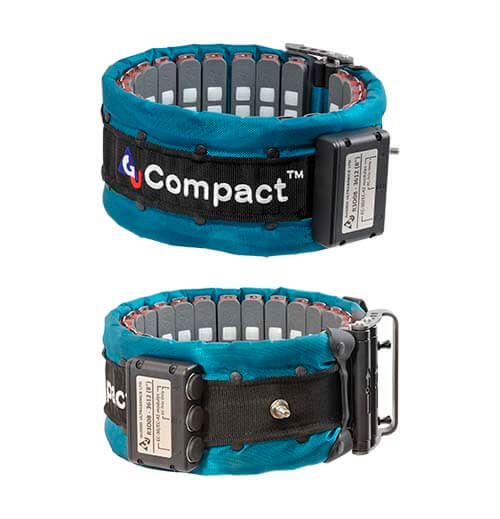

The Compact® ring is the latest addition to the GUL guided wave transduction system which has been designed to be lightweight and low profile. This new system has been completely re‑engineered to build on everything that has been done before, while reducing weight by 35%, axial width by 30%, and radial height clearance to under 38mm.
This is an inspection system designed to tackle a wide range of inspection challenges including:
The Compact® ring is the latest addition to the GUL guided wave transduction system which has been designed to be lightweight and low profile. This new system has been completely re‑engineered to build on everything that has been done before, while reducing weight by 35%, axial width by 30%, and radial height clearance to under 38mm.

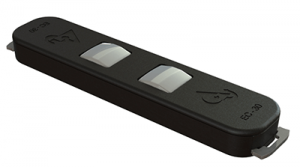

Two row transducer for standard frequency inspection. Key application areas include:

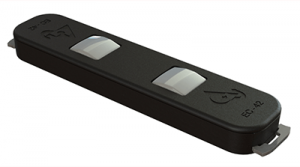

Two row transducer modules with wider spacing for low frequency inspection. Key application areas include:

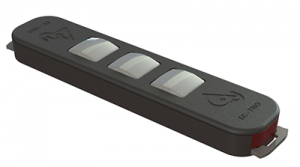

Three row transducer modules with incorporated multiple spacing for inspection across an ultra wide band frequency range without having to swap modules. Application areas include those listed for EC-30 and EC-42 type modules.
This is an inspection system designed to tackle a wide range of inspection challenges including:
Bare / Painted Pipes
Sleeved or Unsleeved Road Crossing Pipes
Buried Pipes
| Number of Channels | 16 (24 with EC-Trio) |
| Nominal Pipe Sizes | 6″ to 36″ (DN 150 to 900) |
| Operating Temperature | -40° to +150°C (300°F) |
| Radial Clearance | 38mm (1.5″) |
| Compatibility | Wavemaker® G4 and G4Mini (Fully Loaded) |
