DMP®10-40 series


Materials Analysis Coating Analysis / Measurements Coating Thickness Gauges

Coating Thickness Gauges

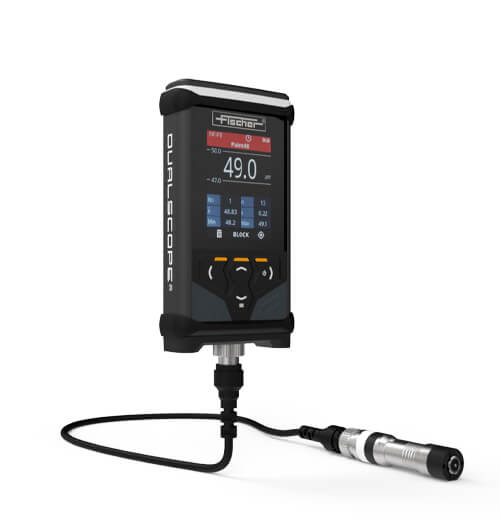

DMP®10-40 series

by Fischer

Description

The all-around capabilities of coating thickness measurement.

Thanks to its enormously wide probe portfolio, the DMP®10-40 series is our universal device series for tactile coating thickness measurement.

Features

  • Robust and durable thanks to all-aluminum housing and IP64.
  • Limit monitoring via light, sound and vibration ¹.
  • Rechargeable and exchangeable battery.
  • ¹ Vibrating alarm available for DUALSCOPE® DMP®40, DELTASCOPE® DMP®30 and ISOSCOPE® DMP®30.

Request quote

Suscribe

Description

The all-around capabilities of coating thickness measurement.

Thanks to its enormously wide probe portfolio, the DMP®10-40 series is our universal device series for tactile coating thickness measurement.

  • Robust and durable thanks to all-aluminum housing and IP64.
  • Limit monitoring via light, sound and vibration ¹.
  • Rechargeable and exchangeable battery.
  • ¹ Vibrating alarm available for DUALSCOPE® DMP®40, DELTASCOPE® DMP®30 and ISOSCOPE® DMP®30.
Details
Additional information
Features

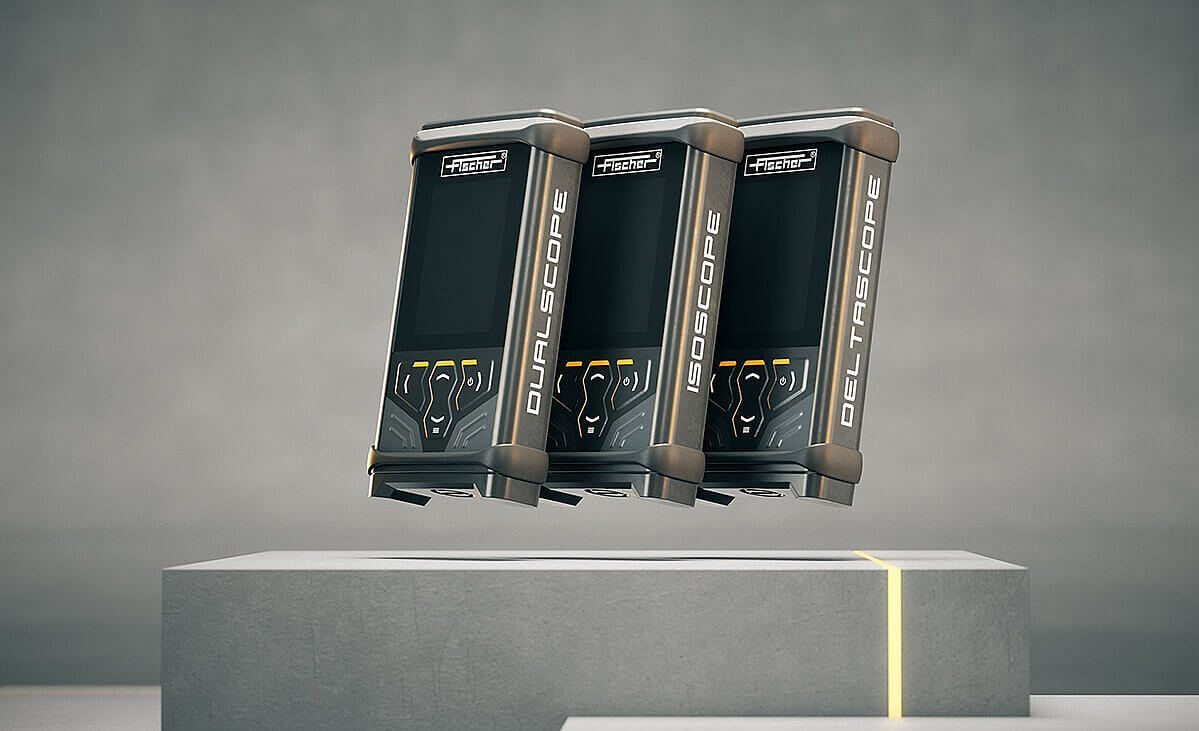

DMP® series
Model differences
Data Sheet

The next level of tactile coating thickness measurement.

The compact handheld gauges of the DMP® family are versatile and can be used for a wide range of applications, especially in quality assurance. With a robust and ergonomic design, extensive functions and a wide range of probes, these flexible devices are the perfect solution for tactile and non-destructive coating thickness measurement of ferrous and non-ferrous base materials.

Built to last.

Next level quality and durability thanks to all-aluminum housing

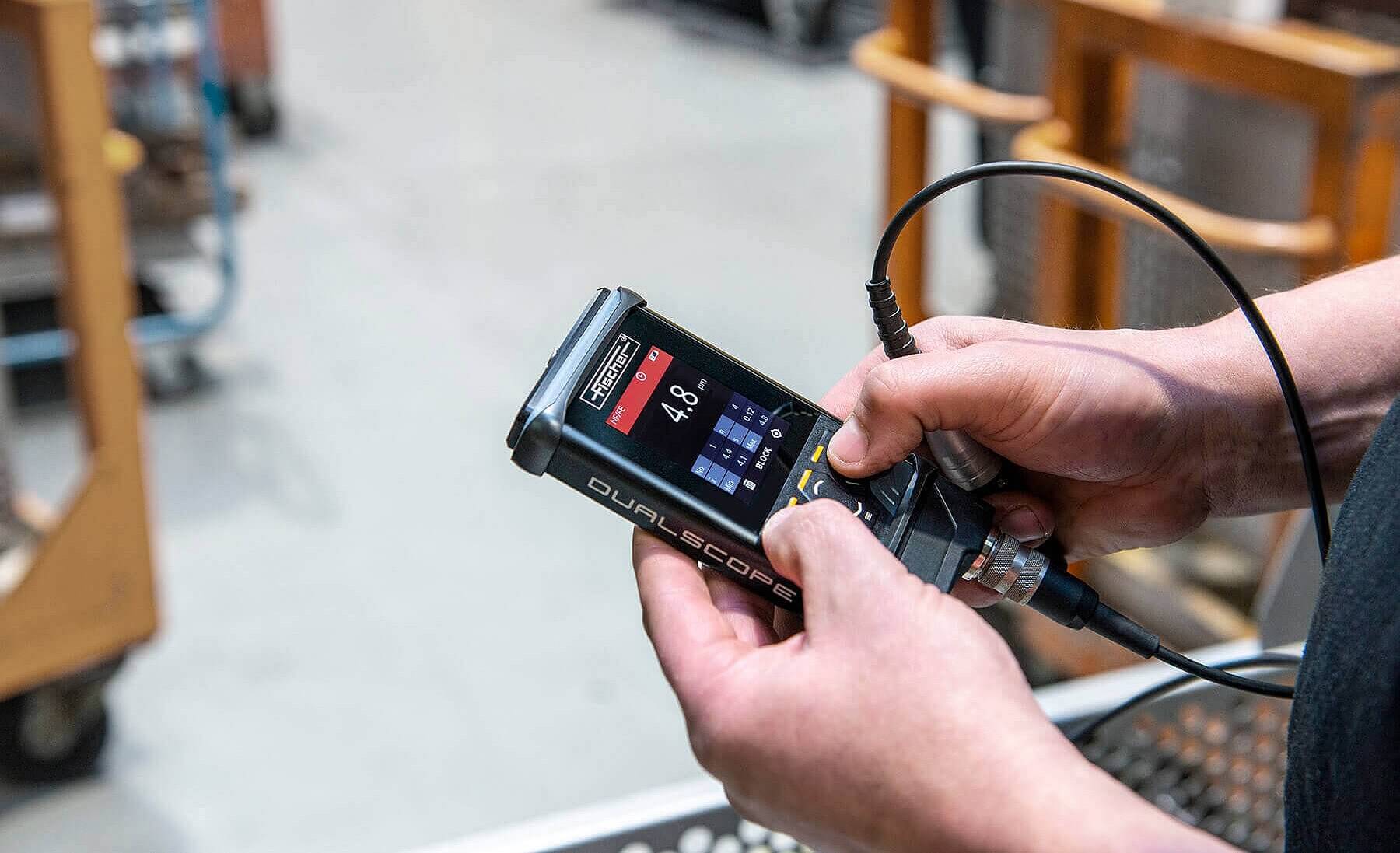

Perfect fit.

Measure 24/7 due to quick and easy battery change

Digital probes.

Fully digitized probes for the most demanding measurement tasks

Full measuring control.

Feedback via light, sound and vibration whether measured values are within tolerance

Backward compatible.

Use all of your existing Fischer probes thanks to exchangeable adapter

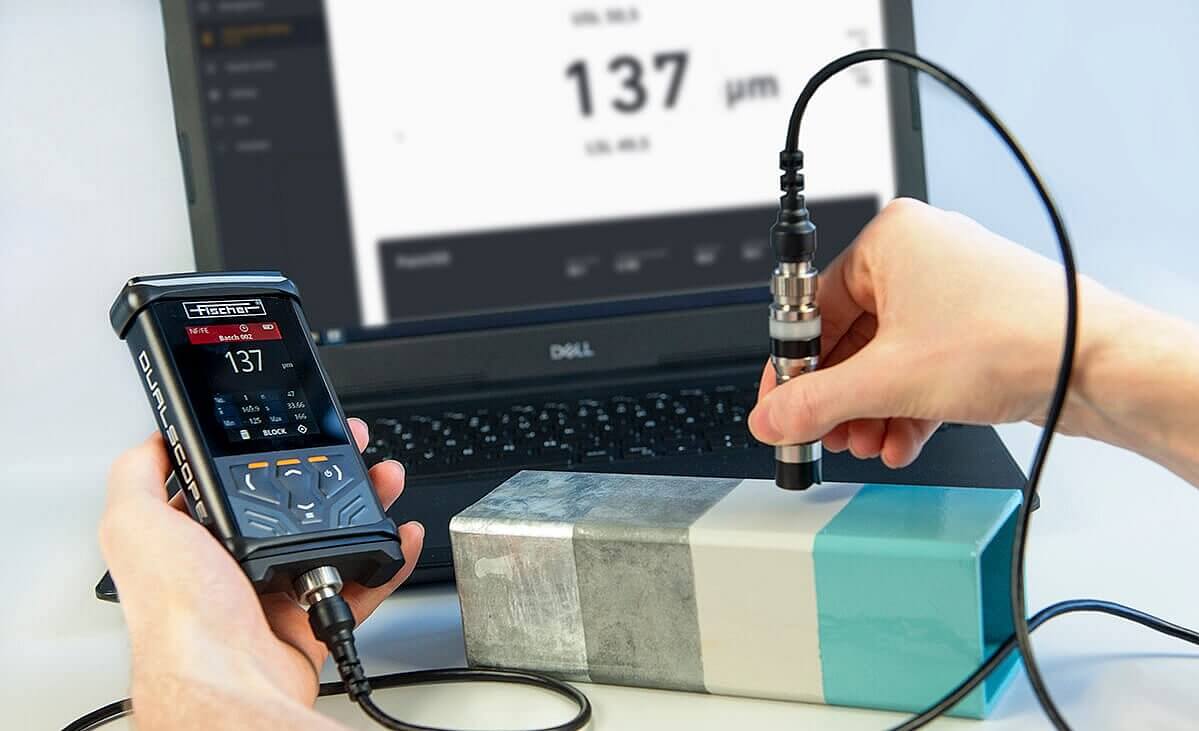

Powerful software.

Automatic device recognition, easy data export and comprehensive reporting

Additional information

Digital probes for all DMP® devices – for highest accuracy and precision as well as smart connectivity via USB-C interface and Bluetooth.

The DMP®10 and 20 models offer an optimum entry-level solution with extensive functionalities. The DMP®30 and 40 models also meet higher demands.

With the help of the F-adapter, user can continue to use the full performance of analog probes and thus benefit from the largest probe portfolio on the market.

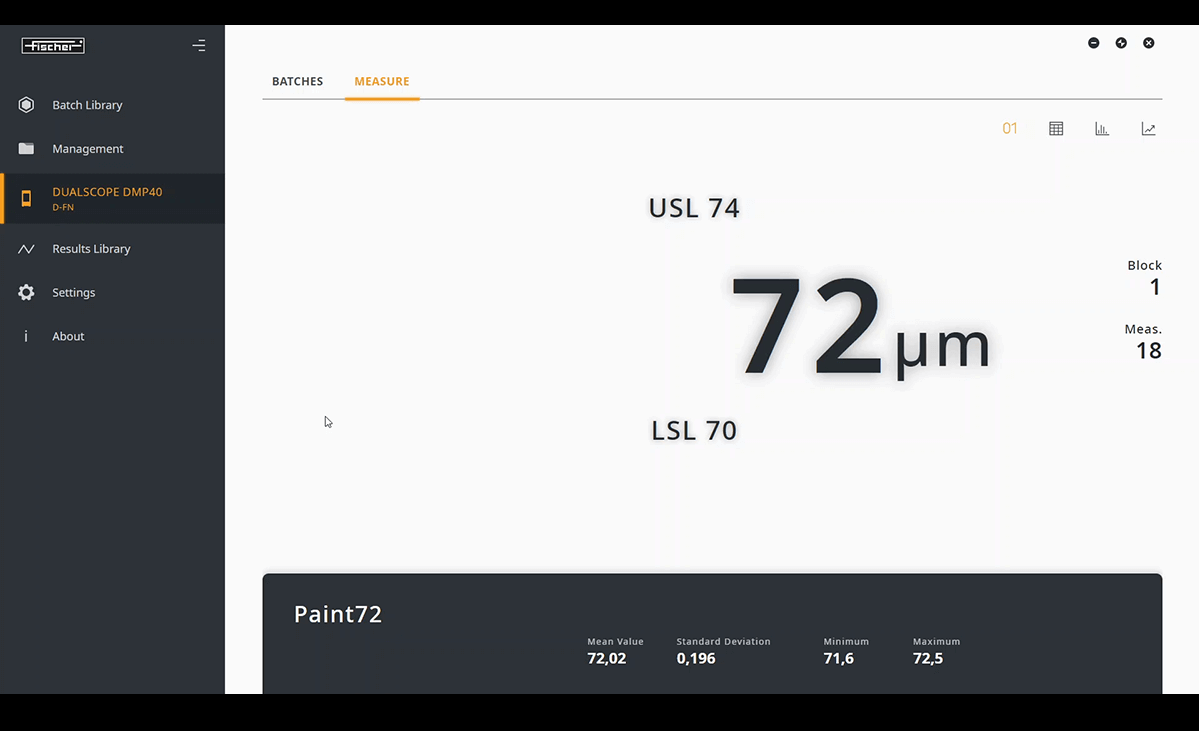

The Tactile Suite® is the most intuitive software in tactile coating thickness measurement. Transferring, evaluating and exporting your data has never been easier.

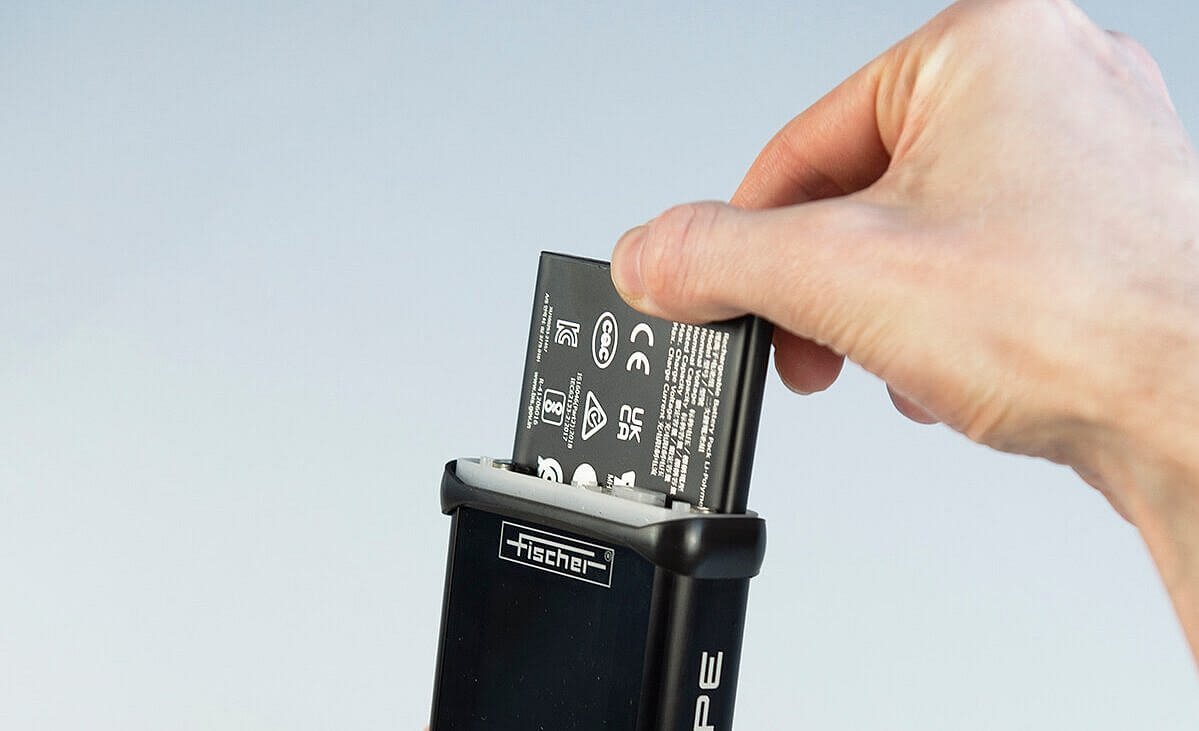

The replaceable and rechargeable lithium-ion battery enables measuring for more than 24 hours at a time. This is both economical and sustainable.

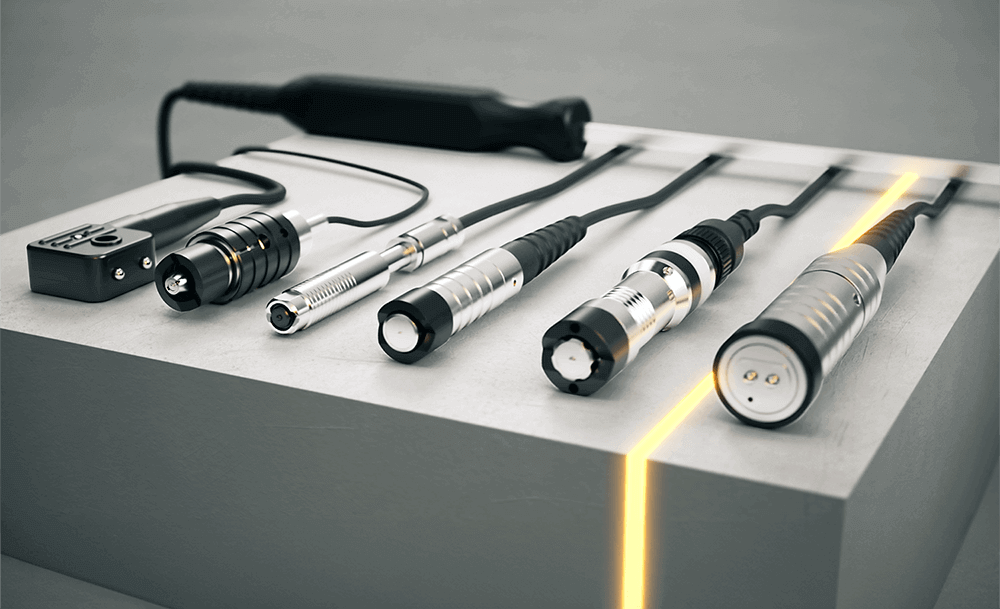

Robust and wear-resistant probes with various housing shapes and properties and outstanding measuring direction.

Features

Test method: Magnetic induction and amplitude-sensitive eddy current method
Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
Measuring range: Depending on the combination of coating and base material and the used probe
Automatic device detection and easy data transfer via USB-C and Bluetooth, depending on the device
Measured value memory: 10,000 in one batch or 250,000 in 2,500 batches, depending on the device
Robust aluminum housing with pro

Overview of the DMP® series and application examples

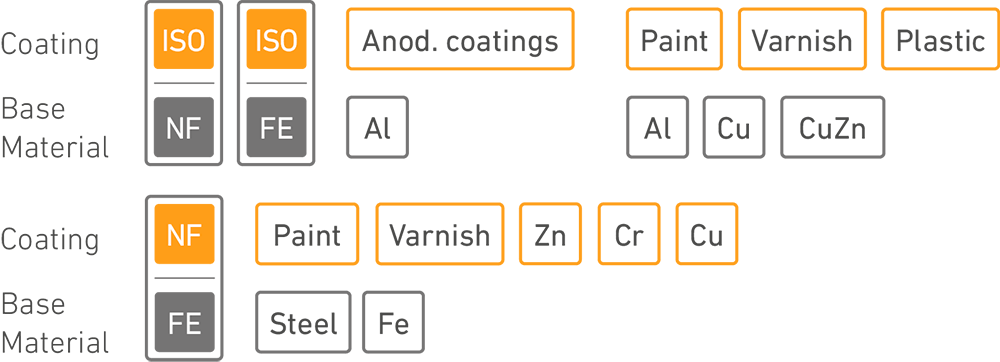

DUALSCOPE® DMP®

Measuring method:

Amplitude-sensitive eddy current method and magnetic inductive measuring method

Applications:

Measurement of non-magnetic or electrically non-conductive coatings on magnetic or non-magnetic, electrically conductive base materials

Application examples:

  • ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
  • ISO on NF: Anodized layers on Al
  • ISO on FE: Paint, lacquer, plastic coatings on Fe, steel
  • NFE on FE: Zn, Cr, Cu on Fe, steel

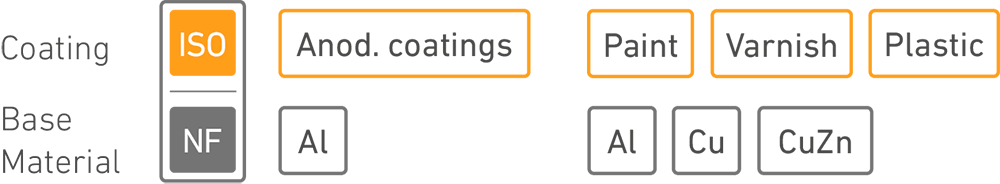

ISOSCOPE® DMP®

Measuring method:

Amplitude-sensitive eddy current method

Applications:

Measurement of electrically insulating coatings on non-magnetic, electrically conductive metals

Application examples:

  • ISO on NF: Paint, lacquer or plastic coatings on Al, Cu, CuZn
  • ISO on NF: Anodized layers on Al

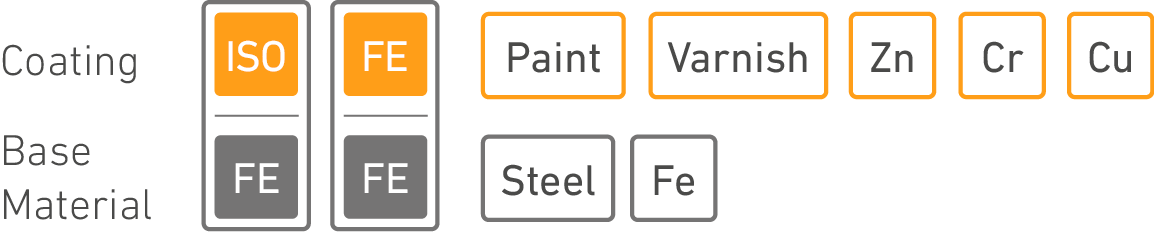

DELTASCOPE® DMP®

Measuring method:

Magnetic inductive measuring method

Applications:

Measurement of non-magnetic coatings on magnetic base materials

Application examples:

  • ISO on FE: Paint, lacquer, plastic coatings on Fe, steel
  • NF on FE: Zn, Cr, Cu on Fe, steel

Model differences in detail

  DUALSCOPE® DELTASCOPE® ISOSCOPE®
Model
DUALSCOPE®
DMP®20
“Entry-level model”		 DUALSCOPE®
DMP®40
“Comfort model”
DELTASCOPE®
DMP®10
“Entry-level model”		 DELTASCOPE®
DMP®30
“Comfort model”
ISOSCOPE®
DMP®10
“Entry-level model”		 ISOSCOPE®
DMP®30
“Comfort model”
Application
Measurement of non-magnetic or electrically non-conductive coatings on magnetic or non-magnetic, electrically conductive base materials
Measurement of non-magnetic coatings on magnetic base materials
Measurement of electrically insulating coatings on non-magnetic, electrically conductive metals
Base material
Non-ferrous metal (NF) and steel or iron (FE)
Steel or iron (FE)
Non-ferrous metal (NF)
Application examples
  • Paint, lacquer or plastic coatings on aluminum, copper or brass (ISO/NF)
  • Anodized coatings on aluminium (ISO/NF)
  • Zinc, chrome, copper coatings on steel or iron (NF/FE)
  • Paint, lacquer, plastic coatings on steel or iron (ISO/FE)
  • Zinc, chrome, copper coatings on steel or iron (NF/FE)
  • Paint, lacquer, plastic coatings on steel or iron (ISO/FE)
  • Paint, lacquer or plastic coatings on aluminum, copper or brass (ISO/NF)
  • Anodized coatings on aluminium (ISO/NF)
Measuring method
Amplitude-sensitive eddy current method AND Magnetic inductive measuring method
Magnetic inductive measuring method
Amplitude-sensitive eddy current method
Measured value memory
≤ 10,000 ≤ 250,000
≤ 10,000 ≤ 250,000
≤ 10,000 ≤ 250,000
Number of measuring tasks
1 ≤ 2,500
1 ≤ 2,500
1 ≤ 2,500
Communication
USB-C USB-C and Bluetooth
USB-C USB-C and Bluetooth
USB-C USB-C and Bluetooth
Limit value monitoring
Light and sound Light, sound and vibration
Light and sound Light, sound and vibration
Light and sound Light, sound and vibration
Standards
DIN EN ISO 2178, DIN EN ISO 2360, ASTM D7091, ASTM 4471
DIN EN ISO 2178, ASTM D7091, ASTM 4471
DIN EN ISO 2360, ASTM D7091, ASTM 4471
