EmBed EC is ideal for integrating Eddy Current into an automated system to provide a solution to varied applications.
Surface breaking defects detection
Sub-surface defects detection in non-ferrous materials
Heat Treatment/Material property verification
Sensing applications for verifying geometry such as the presence of threads, butt-weld detection etc
EmBed EC is ideal for integrating Eddy Current into an automated system to provide a solution to varied applications.
Surface breaking defects detection
Sub-surface defects detection in non-ferrous materials
Heat Treatment/Material property verification
Sensing applications for verifying geometry such as the presence of threads, butt-weld detection etc
The EmbedEC has been designed with the needs of the engineer in mind featuring Analogue outputs and SPI and USB remote control/data streaming for Control System Integration. It’s possible to stream real time data and a DLL is available to permit software integration by the end user.
Industries & Applications:
Displayless
Single Channel
Small footprint
USB or SPI control
Dual analogue outputs on SPI card version
Powered by 5V Dc or USB for easy integration with industrial control systems
DLL available to facilitate software integration
Flexibility

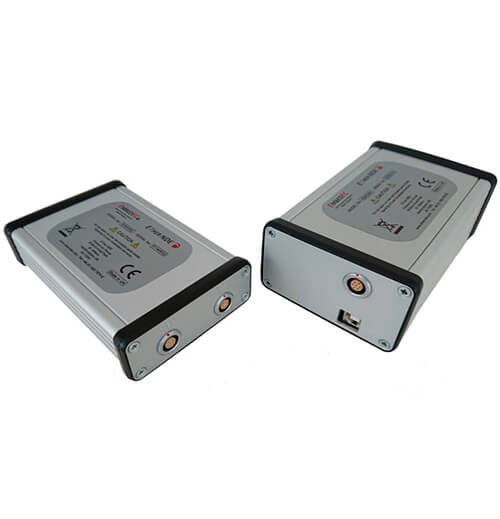

Available as a print circuit board or in an enclosure with USB connector with analogue outputs.
Data Output
Data Streaming is possible over SPI or USB configurations.
| Part # | Item |
|---|---|
| Embed EC: Three Variants | |
| IEMEB001 | PC Board |
| IEMEI001 | USB Instrument without I/O |
| IEMEI002 | USB Instrument with I/O EmbedEC |
| Probe Cables | |
| ALL07-L04-015B | Probe Cable Bridge USB Instrument |
| ALL07-L04-015R | Probe Cable Reflection USB Instrument |
| KIEM001 | Kit, EmbedEC, Embedded Eddy Current Unit (Aluminium Enclosure Body Construction) Including: |
| IEMEI001 | Instrument, EmbedEC, Eddy Current Single Channel/, Single Frequency, (Aluminium Enclosure Body Construction) |
| ALL07-L04-015-EEC-B | Accessory, Lead, Lemo 7-Way – Lemo 4-Way,, 1.5m, To fit EmbedEC (Bridge) |
| ALL07-L04-015-EEC-R | Accessory, Lead, Lemo 7-Way – Lemo 4-Way,, 1.5m, To fit EmbedEC (Reflection) |
| AC009 | Accessory, Hard Carry Case (EmdebEC) |
| A263 | USB LEAD – USB Type B Plug to USB Type A Plug, 1.8M, (RS: 481-0047), (ROLINE 11.02.8818) |
| KIEM002 | Kit, EmbedEC+, Embedded Eddy Current Unit with I/O (Aluminium Enclosure Body Construction) Including: |
| IEMEI002 | Instrument, EmbedEC+, Eddy Current Single Channel/Single Frequency, I/O (Aluminium Enclosure Body Construction) |
| ALL07-L04-015-EEC-B | Accessory, Lead, Lemo 7-Way – Lemo 4-Way,, 1.5m, To fit EmbedEC (Bridge) |
| ALL07-L04-015-EEC-R | Accessory, Lead, Lemo 7-Way – Lemo 4-Way,, 1.5m, To fit EmbedEC (Reflection) |
| AC009 | Accessory, Hard Carry Case (EmdebEC) |
| A288 | Male USB A to Male Micro USB B, USB 2.0 Black, 1m, (RS: 703-1348), (Molex: 68784-0001) |
| C254 | PLUG 6 WAY LEMO FGG.1B.306.CLAD62Z, (LEMO: FGG.1B.306.CLAD62Z), (FARNELL: 3817325) |
| C010 | CABLE SLEEVE – GMA1B054DN LEMO BLACK , (for cable OD 5.4 to 6.0mm) |
| 40787 | Quick Reference Card – EmbedEC+ |
