Robust and powerful handheld device for the measurement of ferrite and martensite content in steels with austenitic microstructures.
Robust and powerful handheld device for the measurement of ferrite and martensite content in steels with austenitic microstructures.

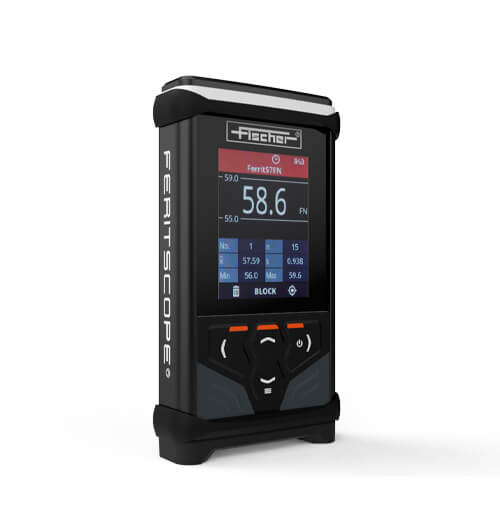

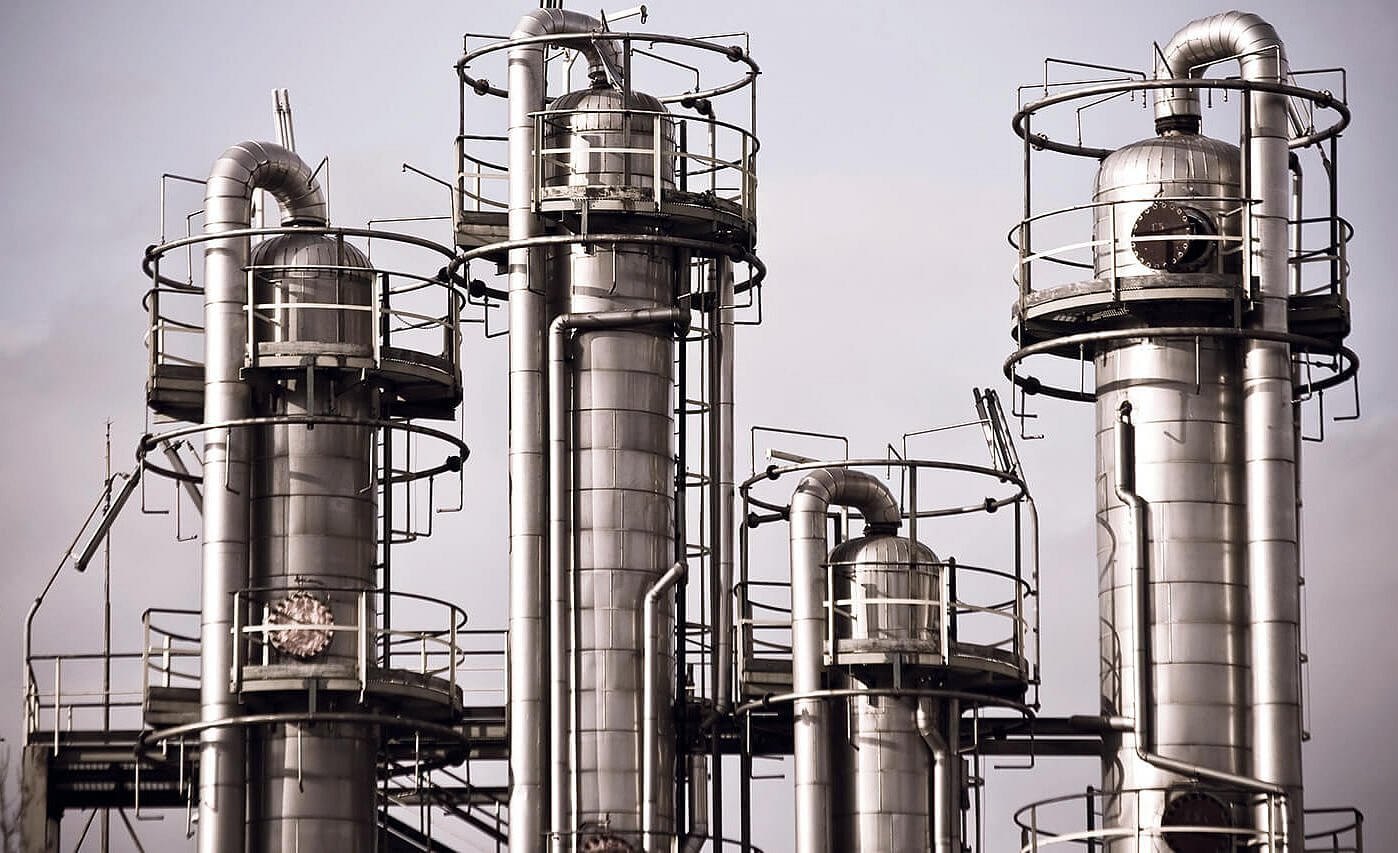

Extensive functionalities, processed in a robust and high-quality all-aluminum housing with a modern design and the intuitive Tactile Suite® software: Our FERITSCOPE® DMP®30 is the specialist for measuring the ferrite and martensite content in chemical plants, energy plants or process plants, even in hard-to-reach places.
Fully digitized probe for the most demanding measuring tasks
Measure 24/7 due to quick and easy battery change
Feedback via light, sound and vibration whether measured values are within tolerance
Next level quality and durability thanks to all-aluminum housing
Automatic device recognition, easy data export and comprehensive reporting
Use your existing Fischer probes thanks to exchangeable adapter

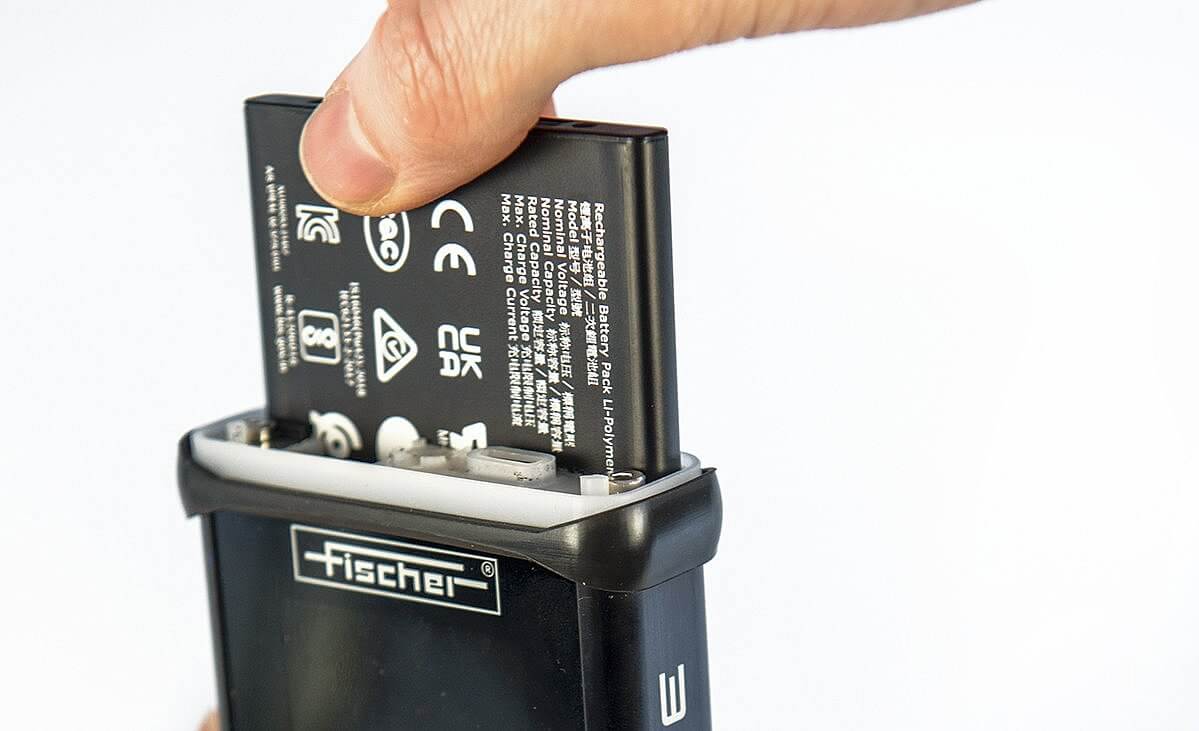

Replaceable Li-ion battery for > 24 h operating time

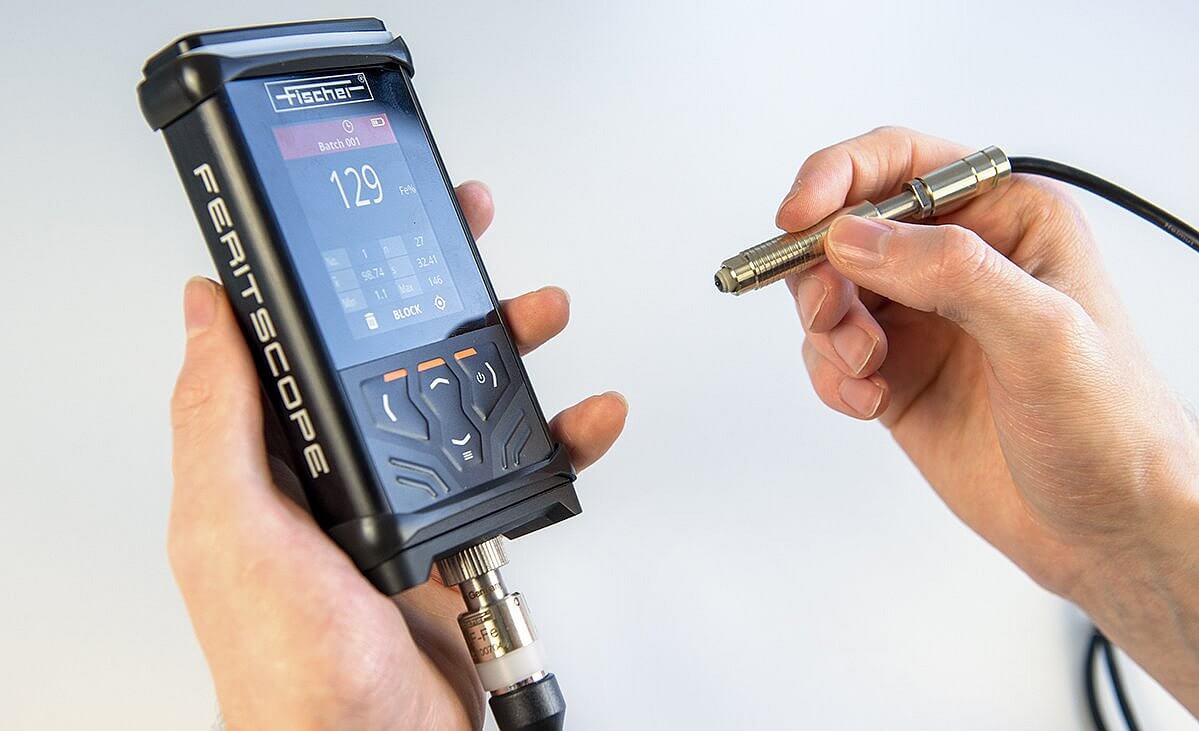

Digital probes available for a wide range of applications, analog probes backwards compatible thanks to F-adapter
Measuring range: 0.1 – 80% Fe or 0.1 – 110 FN
Measured value memory: 250,000 in 2,500 applications
Automatic device detection and easy data transfer via USB-C and Bluetooth
Robust aluminum housing with protection class IP64

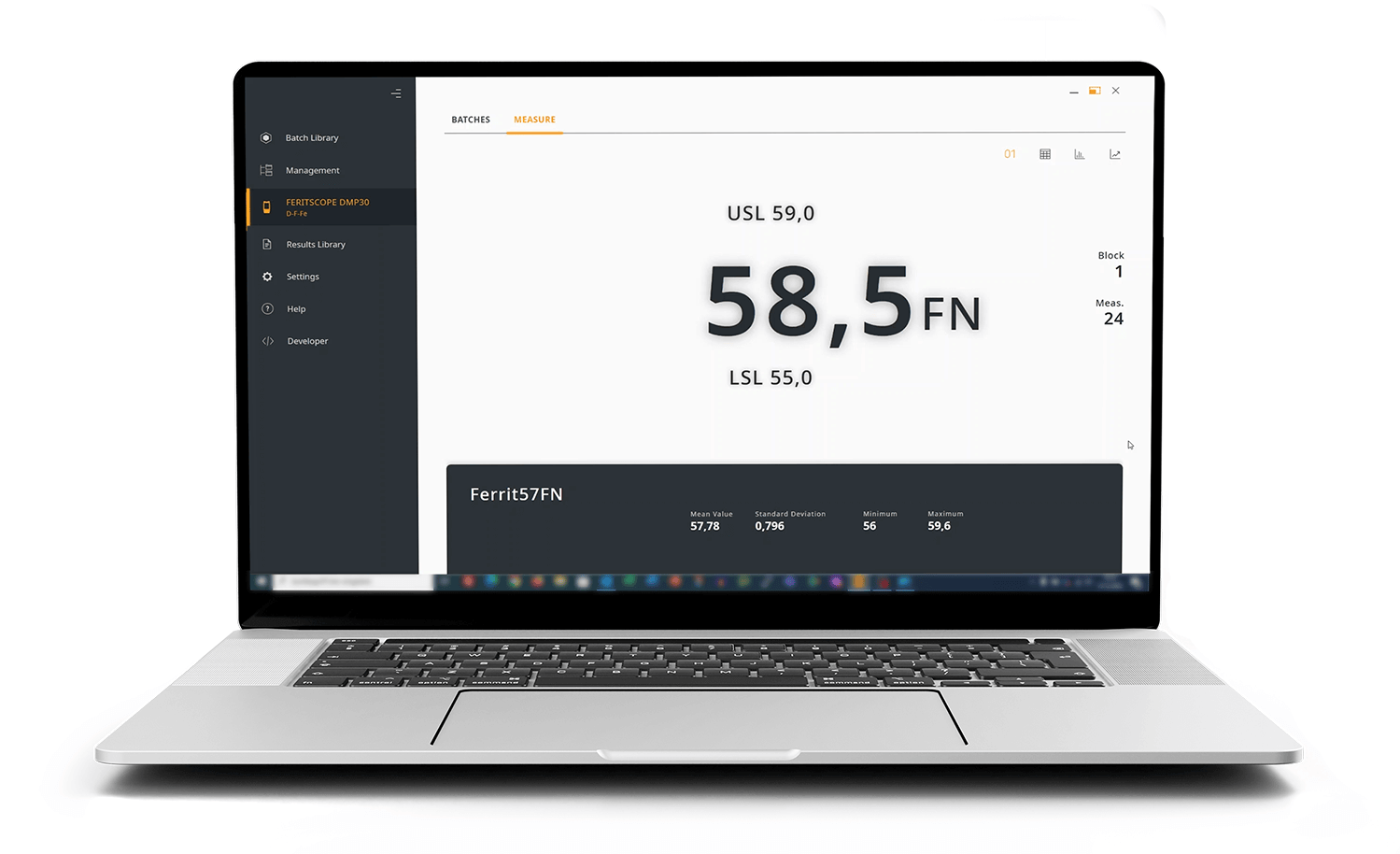

Most powerful software in tactile coating thickness measurement: Tactile Suite®
Measuring method: Magnetic inductive
Limit value monitoring via light, sound and vibration
Determining the delta ferrite content in austenitic and duplex steels
Determining the proportion of deformation martensite in austenitic materials
Detecting weld seams in polished surfaces

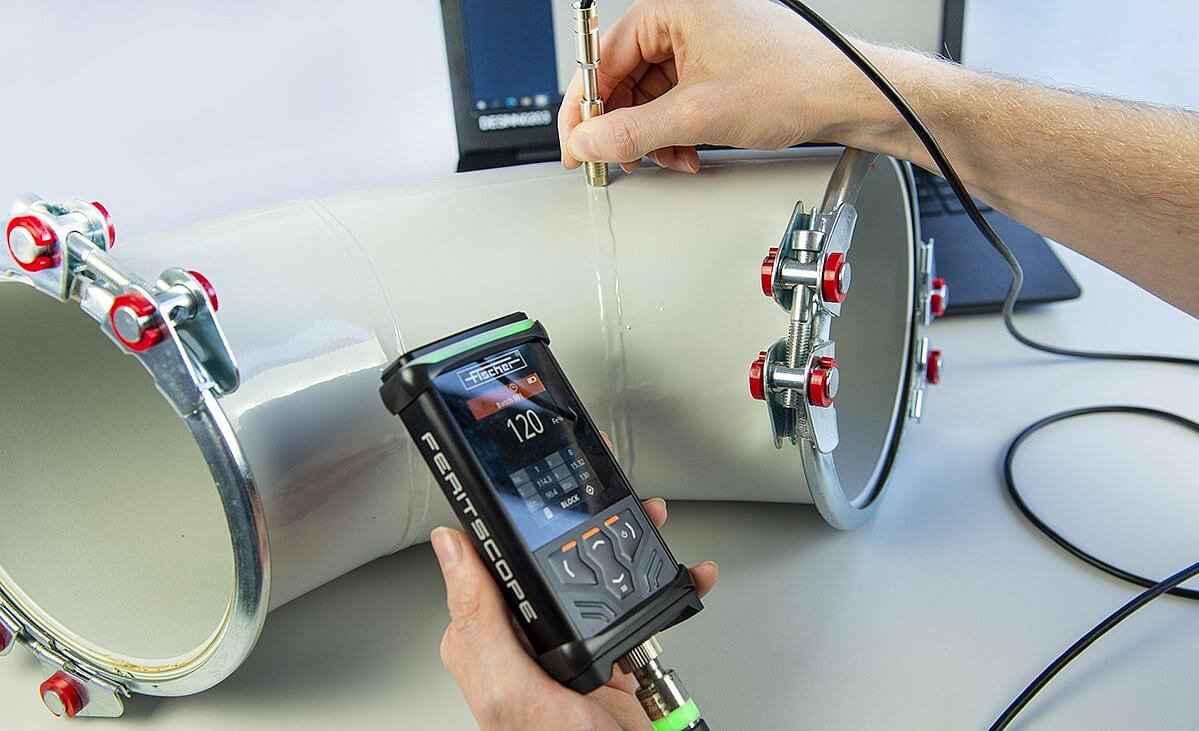

Determining the ferrite content distribution along a weld seam
