For Inspection of SG/Ductile or Gray Iron Parts and In-Line Nodularity Control the “MATVEL” is a comprehensive solution featuring Dry-Coupled Probes and Direct Read-out of Velocity with User-Programmable Thresholds. MATVEL can run up to 8 Channels and has 5V / 24V Inputs & Outputs with the option of Ethernet communications.
MatVel is a state-of-the-art digital ultrasonic nodularity control system for industrial applications in the cast iron industry; uniquely offering dry coupled ultrasonic measurement capability.
The system is suitable for manual or in-line spot testing of components. This is achieved by using a customized transducer and delay line.
MatVel combines all the functionality of an outstanding flaw detector together with specific add-ons customized for the application.
The system can therefore meet the requirements for any set up, with live A-scan signal presentation and direct reading of acoustic velocity, thickness measurements and flaw (in spot) detection.

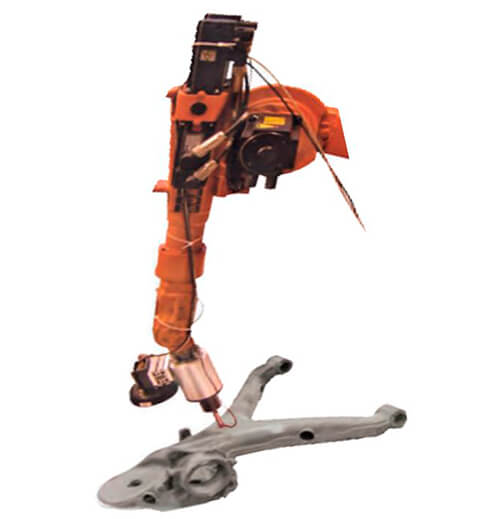

MatVel is an autonomous system ready for the integration on the most common process lines as one additional step or to be installed in a separate inspection cabinet.
For Inspection of SG/Ductile or Gray Iron Parts and In-Line Nodularity Control the “MATVEL” is a comprehensive solution featuring Dry-Coupled Probes and Direct Read-out of Velocity with User-Programmable Thresholds. MATVEL can run up to 8 Channels and has 5V / 24V Inputs & Outputs with the option of Ethernet communications.
MatVel is a state-of-the-art digital ultrasonic nodularity control system for industrial applications in the cast iron industry; uniquely offering dry coupled ultrasonic measurement capability.
The system is suitable for manual or in-line spot testing of components. This is achieved by using a customized transducer and delay line.
MatVel combines all the functionality of an outstanding flaw detector together with specific add-ons customized for the application.
The system can therefore meet the requirements for any set up, with live A-scan signal presentation and direct reading of acoustic velocity, thickness measurements and flaw (in spot) detection.
MatVel is an autonomous system ready for the integration on the most common process lines as one additional step or to be installed in a separate inspection cabinet.

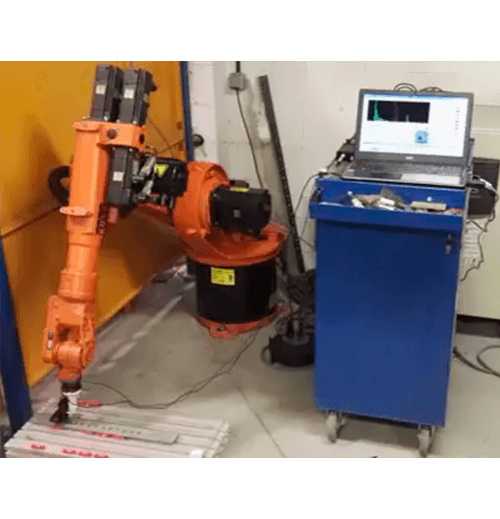

Full process automation and control.
Digital I/O outputs PC Board, and PLC
From 1 MHz to 20 MHz transducers
Spheric or membranes delays (acc. to thickness).

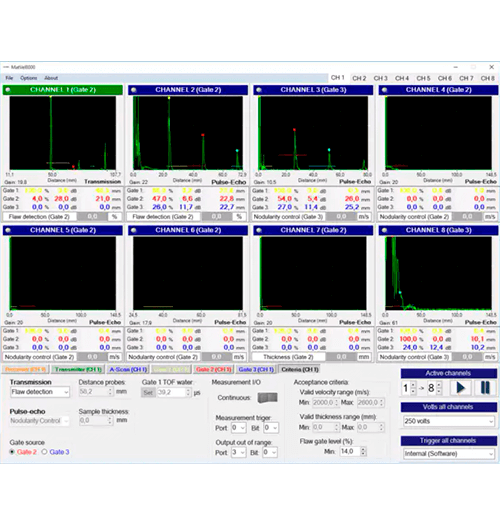

Software aplicación. for automated control, acquisition, evaluation, reporting.

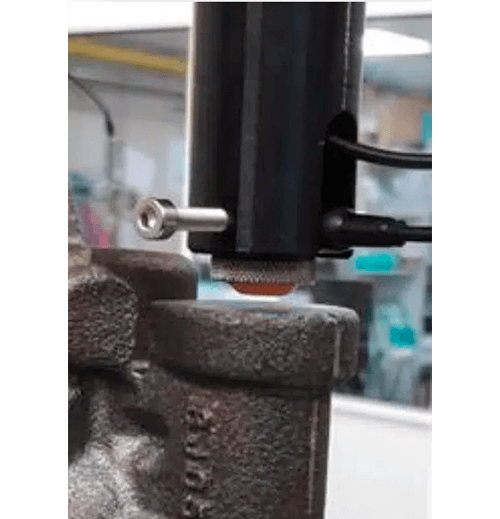

Precise and consistent transducer placement.
Dry-coupled transducer avoids couplant/oil contamination of part.
Reduces cost by eliminating couplant and cleaning.
Choice of digital or analogue outputs.
Direct read out of velocity.
User programmable alarm limits.
Socomate 8 channels UT PC Board
Remote pulser
Immersion technique, transmission.
Fixed probes distance.
Water travel path known
TOF modification due to part, will allow the calculation of the REAL UT velocity.
Flaw detection.
Thickness measurements
Real UT velocity in immersion technique
Tecnitest has been developing dry coupling components for more than 10 years, providing the market with different solutions in different industrial sectors, like: Nodularity control, spotweld inspection and carbon fiber inspection.

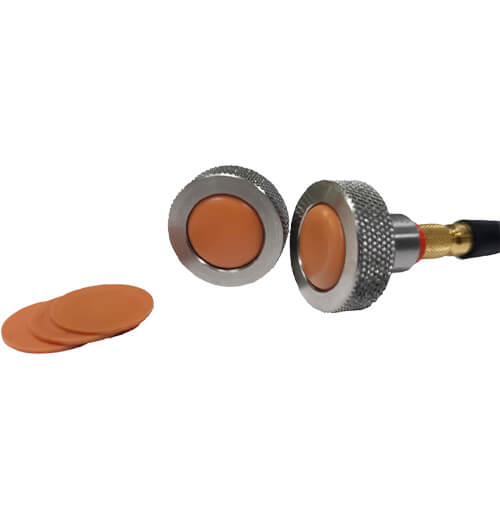

UNIQUE DRY COUPLANT TECHNIQUE with different shapes for the delays are available together with different probe configurations (frequency and dimensions) to assure the best approach to the customer part.
Nodularity, Thickness measurements and flaw detection, at same time due to 8 channels UT board
